WebSockets in practice: from handshake to production deploy
Complete guide to WebSockets: how they work, implementation with Socket.IO and ws, scaling with Redis, and when to actually use them.
Thiago Saraiva
Fundamentals
What are WebSockets?

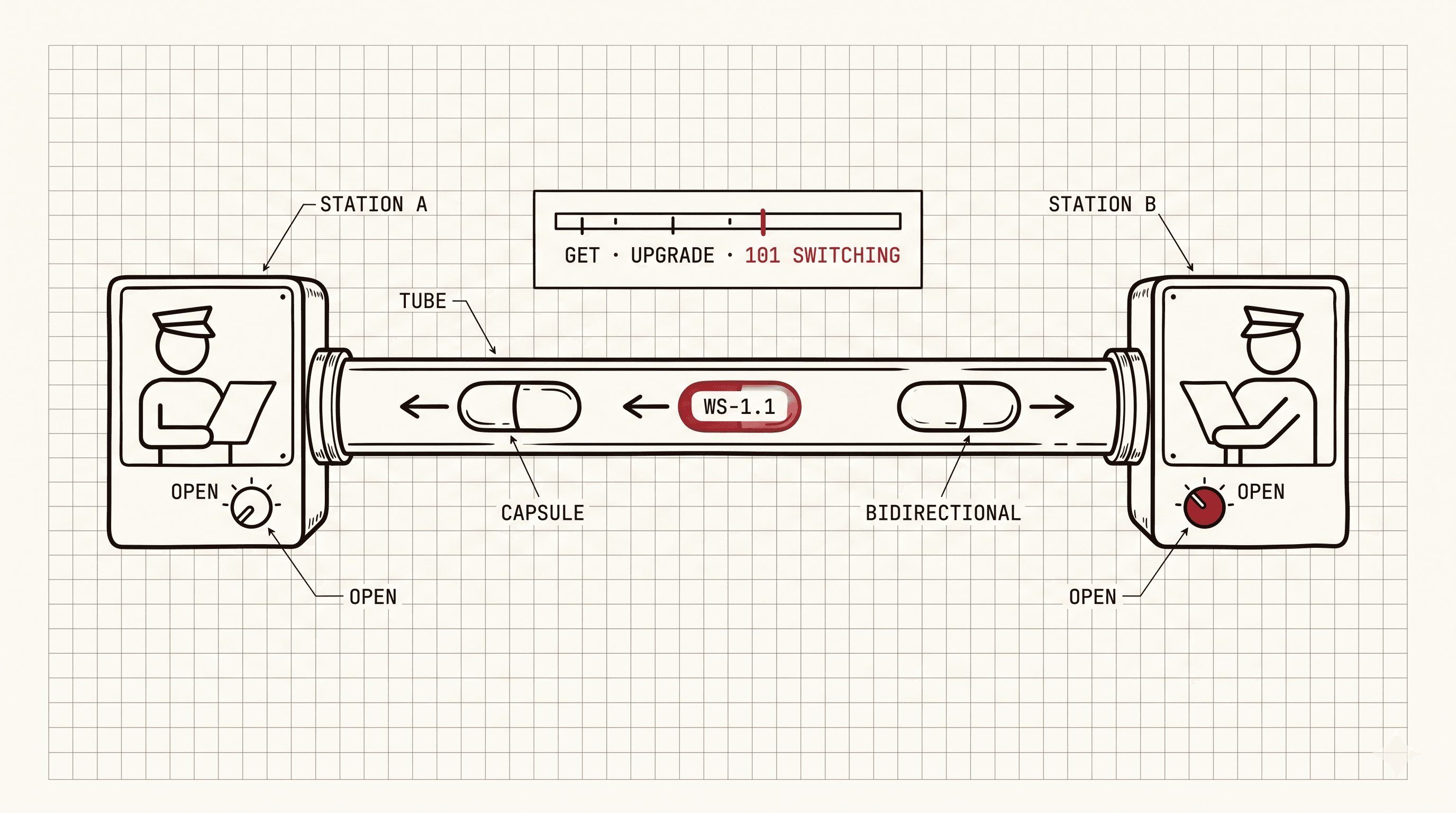

WebSockets (RFC 6455) enable real-time communication with low latency. Unlike traditional HTTP (request/response), WebSockets maintain an open connection where both sides can send data at any time.
Technology Comparison
<table> <tr> <td>Feature</td> <td>WebSocket</td> <td>HTTP/REST</td> <td>SSE</td> <td>Long Polling</td> </tr> <tr> <td>Direction</td> <td>Bidirectional</td> <td>Unidirectional</td> <td>Server→Client</td> <td>Client→Server</td> </tr> <tr> <td>Latency</td> <td>\< 1ms</td> <td>50-200ms</td> <td>\~5ms</td> <td>100-500ms</td> </tr> <tr> <td>Overhead</td> <td>2 bytes/frame</td> <td>\~800 bytes</td> <td>\~50 bytes</td> <td>\~800 bytes</td> </tr> <tr> <td>Protocol</td> <td>ws:// wss://</td> <td>http:// https://</td> <td>http:// https://</td> <td>http:// https://</td> </tr> <tr> <td>Browser Support</td> <td>98%+</td> <td>100%</td> <td>95%+</td> <td>100%</td> </tr> <tr> <td>Reconnection</td> <td>Manual</td> <td>N/A</td> <td>Automatic</td> <td>Manual</td> </tr> </table> ## Handshake and Upgrade WebSocket starts as a normal HTTP request and upgrades to the WS protocol:Server response:
PostgreSQL LISTEN/NOTIFY
PostgreSQL offers native pub/sub that can trigger WebSocket events:
Node.js integration:
Redis Pub/Sub as Backbone
Redis is ideal for distributing events across multiple WebSocket server instances:
MongoDB Change Streams
MongoDB 4.0+ change streams let you react to real-time data changes:
Backend Layer
Node.js — ws (Raw WebSocket)
The ws library is the fastest and lightest option:
Socket.IO Server
Socket.IO adds rooms, broadcasts, and automatic transport fallback:
Python FastAPI WebSocket
Go gorilla/websocket
JWT Authentication at Handshake
Pattern: Rooms and Channels
Frontend Layer
Native WebSocket API
Reconnection with Exponential Backoff
Socket.IO Client
React Hook useWebSocket
Zustand Integration
Binary Data (ArrayBuffer/Blob)
Scaling and Infrastructure
Sticky Sessions
Load balancers must route the same client to the same server: Nginx:
Redis Adapter for Socket.IO
Enables broadcast across multiple instances with one line:
Horizontal Scaling with Pub/Sub
Architecture for multiple WS servers — each instance subscribes to a shared Redis channel:
AWS ALB WebSocket Support
Key CloudFormation settings for WebSocket-compatible ALB:
- Enable stickiness (
lb_cookie) on the Target Group so sessions stay pinned to one instance. - Set
deregistration_delaylow (e.g. 30s) to allow graceful draining. - The ALB listener forwards traffic to the target group; no special WebSocket protocol flag is needed — ALB handles the upgrade transparently.
API Gateway WebSocket (Serverless)
AWS API Gateway WebSocket routes each event to a Lambda function. Connection IDs are stored in DynamoDB; to push messages back you call ApiGatewayManagementApi.postToConnection.
join(userId, username, ws) { this.clients.set(userId, { ws, username }); ws.send(JSON.stringify({ type: 'HISTORY', messages: this.messages.slice(-50) })); this.broadcast({ type: 'USER_JOINED', userId, username, userCount: this.clients.size }, userId); }
leave(userId) { const client = this.clients.get(userId); if (!client) return; this.clients.delete(userId); this.typingUsers.delete(userId); this.broadcast({ type: 'USER_LEFT', userId, username: client.username, userCount: this.clients.size }); }
sendMessage(userId, text) { const { username } = this.clients.get(userId) || {}; if (!username) return; const message = { id: Date.now() + Math.random(), userId, username, text, timestamp: Date.now() }; this.messages.push(message); if (this.messages.length > 100) this.messages.shift(); this.broadcast({ type: 'MESSAGE', message }); db.query('INSERT INTO messages (room_id, user_id, text, created_at) VALUES ($1,$2,$3,$4)', [this.roomId, userId, text, new Date()]); }
setTyping(userId, isTyping) { isTyping ? this.typingUsers.add(userId) : this.typingUsers.delete(userId); this.broadcast({ type: 'TYPING', userId, username: this.clients.get(userId)?.username, isTyping }, userId); }
broadcast(data, excludeUserId = null) { this.clients.forEach((client, uid) => { if (uid !== excludeUserId && client.ws.readyState === WebSocket.OPEN) client.ws.send(JSON.stringify(data)); }); } }
// Frontend React function ChatRoom({ roomId, userId, username }) { const [messages, setMessages] = useState([]); const [typingUsers, setTypingUsers] = useState([]); const [inputText, setInputText] = useState(''); const wsRef = useRef(null); const typingTimeout = useRef(null);
useEffect(() => { const ws = new WebSocket('ws://localhost:8080'); wsRef.current = ws; ws.onopen = () => ws.send(JSON.stringify({ type: 'JOIN', roomId, userId, username })); ws.onmessage = (e) => { const data = JSON.parse(e.data); if (data.type === 'HISTORY') setMessages(data.messages); else if (data.type === 'MESSAGE') setMessages(prev => [...prev, data.message]); else if (data.type === 'TYPING') setTypingUsers(prev => data.isTyping ? [...prev, data.username] : prev.filter(u => u !== data.username) ); }; return () => ws.close(); }, [roomId, userId, username]);
const handleInputChange = (e) => { setInputText(e.target.value); wsRef.current?.send(JSON.stringify({ type: 'TYPING', isTyping: true })); clearTimeout(typingTimeout.current); typingTimeout.current = setTimeout(() => wsRef.current?.send(JSON.stringify({ type: 'TYPING', isTyping: false })), 3000); };
const handleSend = () => { if (inputText.trim()) { wsRef.current?.send(JSON.stringify({ type: 'MESSAGE', text: inputText })); setInputText(''); } };
return ( <div className="chat-room"> <div className="messages"> {messages.map(msg => <div key={msg.id}><strong>{msg.username}:</strong> {msg.text}</div>)} </div> {typingUsers.length > 0 && <div className="typing-indicator">{typingUsers.join(', ')} is typing...</div>} <input value={inputText} onChange={handleInputChange} onKeyPress={(e) => e.key === 'Enter' && handleSend()} /> <button onClick={handleSend}>Send</button> </div> ); }
## Collaborative Editing (OT Basics)
```javascript
// Backend - Operational Transformation (simplified)
class CollaborativeDoc {
constructor() {
this.content = '';
this.version = 0;
this.clients = new Map();
}
applyOperation(op) {
// Op: { type: 'insert'|'delete', position, text?, length? }
if (op.type === 'insert') {
this.content = this.content.slice(0, op.position) + op.text + this.content.slice(op.position);
} else if (op.type === 'delete') {
this.content = this.content.slice(0, op.position) + this.content.slice(op.position + op.length);
}
this.version++;
this.broadcast(op);
}
transform(op1, op2) {
// Transform op1 assuming op2 was applied first
if (op1.type === 'insert' && op2.type === 'insert') {
return op1.position < op2.position ? op1 : { ...op1, position: op1.position + op2.text.length };
}
return op1; // In practice, use ShareDB or Yjs
}
broadcast(operation, excludeClientId) {
this.clients.forEach((ws, clientId) => {
if (clientId !== excludeClientId) {
ws.send(JSON.stringify({ type: 'OPERATION', operation, version: this.version }));
}
});
}
}
// Frontend
class CollaborativeEditor {
constructor(docId, ws) {
this.docId = docId;
this.ws = ws;
this.content = '';
this.version = 0;
this.pendingOps = [];
this.editor = document.getElementById('editor');
this.editor.addEventListener('input', () => {
const cursorPos = this.editor.selectionStart;
const newContent = this.editor.value;
const diff = newContent.length - this.content.length;
const op = diff > 0
? { type: 'insert', position: cursorPos - diff, text: newContent.slice(cursorPos - diff, cursorPos) }
: { type: 'delete', position: cursorPos, length: -diff };
this.content = newContent;
this.pendingOps.push(op);
this.ws.send(JSON.stringify({ type: 'OPERATION', docId: this.docId, operation: op, version: this.version }));
});
this.ws.onmessage = (event) => {
const data = JSON.parse(event.data);
if (data.type !== 'OPERATION') return;
// Transform incoming op against all pending ops, then apply
let op = data.operation;
for (const pending of this.pendingOps) op = this.transform(op, pending);
const cursor = this.editor.selectionStart;
if (op.type === 'insert') this.content = this.content.slice(0, op.position) + op.text + this.content.slice(op.position);
else if (op.type === 'delete') this.content = this.content.slice(0, op.position) + this.content.slice(op.position + op.length);
this.editor.value = this.content;
this.editor.setSelectionRange(cursor, cursor);
this.version++;
};
}
transform(op1, op2) { return op1; } // simplified
}Live Notifications
Multiplayer Game State Sync
Performance
Performance Comparison
<table> <tr> <td>Metric</td> <td>WebSocket</td> <td>HTTP Long Polling</td> <td>SSE</td> </tr> <tr> <td>Average latency</td> <td>1-5ms</td> <td>100-500ms</td> <td>5-20ms</td> </tr> <tr> <td>Overhead per message</td> <td>2-6 bytes</td> <td>\~800 bytes</td> <td>\~50 bytes</td> </tr> <tr> <td>Throughput (msg/s)</td> <td>10,000+</td> <td>\~10</td> <td>\~100</td> </tr> <tr> <td>Simultaneous connections</td> <td>100,000+</td> <td>\~1,000</td> <td>\~10,000</td> </tr> <tr> <td>CPU usage (10k conn)</td> <td>\~5%</td> <td>\~40%</td> <td>\~15%</td> </tr> <tr> <td>Memory per connection</td> <td>\~8KB</td> <td>\~50KB</td> <td>\~15KB</td> </tr> <tr> <td>Battery drain (mobile)</td> <td>Low</td> <td>High</td> <td>Medium</td> </tr> </table> ## Memory per Connection <table> <tr> <td>Library</td> <td>Base memory</td> <td>Per connection</td> <td>10k connections</td> </tr> <tr> <td>ws (Node.js)</td> <td>\~50MB</td> <td>\~8KB</td> <td>\~130MB</td> </tr> <tr> <td>Socket.IO</td> <td>\~80MB</td> <td>\~15KB</td> <td>\~230MB</td> </tr> <tr> <td>uWebSockets.js</td> <td>\~20MB</td> <td>\~3KB</td> <td>\~50MB</td> </tr> <tr> <td>gorilla/websocket (Go)</td> <td>\~10MB</td> <td>\~4KB</td> <td>\~50MB</td> </tr> <tr> <td>FastAPI (Python)</td> <td>\~40MB</td> <td>\~20KB</td> <td>\~240MB</td> </tr> </table> ## Max Connections per Server <columns> <column> **Node.js (ws):** Single-core ~10k, multi-core ~100k, cluster ~1M. Limits: file descriptors (`ulimit -n`), RAM, bandwidth. </column> <column> **Go (gorilla):** Single-core ~50k, multi-core ~500k, with load balancer ~5M. Tune `GOMAXPROCS` and `GOMEMLIMIT`. </column> </columns> ## Benchmark: Messages per Second Use `wscat` or `ws-bench` for load testing. Typical results: <table> <tr> <td>Scenario</td> <td>Connections</td> <td>Messages/s</td> <td>Latency p99</td> </tr> <tr> <td>Local (ws)</td> <td>100</td> <td>50,000</td> <td>2ms</td> </tr> <tr> <td>Local (Socket.IO)</td> <td>100</td> <td>30,000</td> <td>5ms</td> </tr> <tr> <td>LAN</td> <td>1,000</td> <td>100,000</td> <td>10ms</td> </tr> <tr> <td>Internet (US-East)</td> <td>10,000</td> <td>200,000</td> <td>50ms</td> </tr> <tr> <td>Global (multi-region)</td> <td>100,000</td> <td>500,000</td> <td>200ms</td> </tr> </table> --- # Security ## Origin Validation ```javascript const WebSocket = require('ws');const wss = new WebSocket.Server({ verifyClient: (info, callback) => { const origin = info.origin || info.req.headers.origin; const allowedOrigins = [ 'https://example.com', 'https://app.example.com' ];
if (allowedOrigins.includes(origin)) {
callback(true);
} else {
console.log(`Rejected origin: ${origin}`);
callback(false, 403, 'Origin not allowed');
}} });
## Rate Limiting
```javascript
const rateLimit = new Map();
function checkRateLimit(id, limit = 10, windowMs = 1000) {
const now = Date.now();
const d = rateLimit.get(id) || { count: 0, resetAt: now + windowMs };
if (now > d.resetAt) { d.count = 0; d.resetAt = now + windowMs; }
d.count++;
rateLimit.set(id, d);
return d.count <= limit;
}
wss.on('connection', (ws, req) => {
const ip = req.socket.remoteAddress;
ws.on('message', (data) => {
if (!checkRateLimit(ip, 10, 1000)) { ws.send(JSON.stringify({ error: 'Rate limit exceeded' })); return; }
// process...
});
});DoS Protection
WSS (TLS)
Always use wss:// in production. Two options:
Option 1 — TLS directly in Node.js:
Option 2 — Nginx as WSS proxy (recommended):
Decision Framework
When to use WebSocket?
Use WebSocket when:
- Real-time chat
- Multiplayer games
- Collaborative editing
- Trading / financial dashboards
- Audio/video streaming
- IoT (device to server bidirectional)
Avoid WebSocket when:
- Only server to client communication (use SSE instead)
- Infrequent updates (use polling)
- Public API (hard to cache)
- Infrastructure without support (corporate firewalls)
